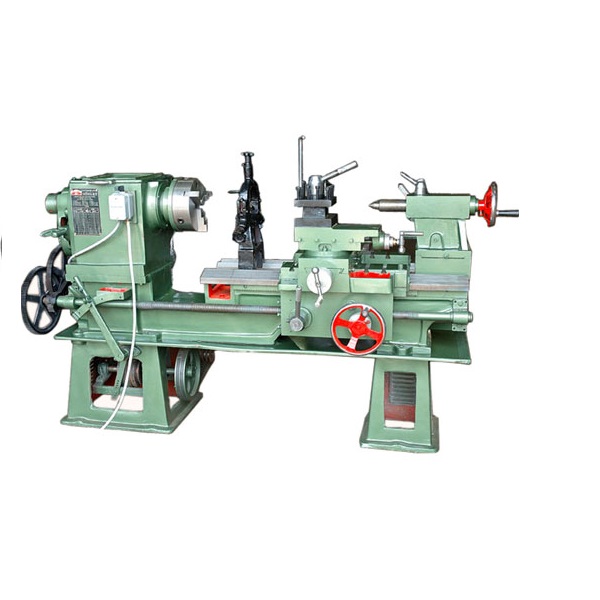

Description
- Maximum Turning Diameter (Between Centers): 500 mm
- Swing Over Bed: 1200 mm
- Distance Between Centers: 1400 mm
- Bed Length: 1750 mm
- Bed Width: 370 mm
- Cone Slide Stroke: 120 mm
- Cross Slide Stroke: 300 mm
- Spindle Speed Ranges: 291 – 504 RPM
- Spindle Bore Diameter: Ø85 mm
- Motor Power: 3HP-1400 RPM
- Machine Dimensions: 2400 x 1100 x 1217 mm
- Machine Weight: 1400 kg
This machine is ideal for demanding industrial applications, ensuring precise and efficient machining of large components thanks to its sturdy construction and advanced features
